Corrugated Flexible Metal Hoses
DN25-DN400
Metal hose is a flexible piping component made of corrugated stainless steel, equipped with braided wire mesh and end fittings. It absorbs thermal expansion, compensates for pipeline displacement, reduces vibration and noise, and resists high temperature, high pressure and corrosion. Widely used in petroleum, chemical, power, metallurgy and pipeline systems for safe medium transmission.
Delivery
EXW
minimum order
10 pieces
Supply Ability
100pieces / Day
Country of Origin
CHINA
Stock Time
7Day
Quantity:
US $50.00 - US $500.00 / pieces
1. Product Overview
Stainless steel flexible metal hose is a core flexible compensation component widely used in modern industrial piping systems. It is professionally assembled with three core parts: seamless stainless steel corrugated inner tube, multi-layer stainless steel braided mesh sleeve and integrated metal end fittings. Different from ordinary rigid pipes, this product combines excellent flexibility, pressure resistance and sealing performance, which can effectively solve various pipeline application problems such as vibration impact, thermal deformation, installation deviation and medium leakage. It is a reliable connecting accessory for fluid transmission engineering.
2. Structural Composition
The metal hose adopts a layered composite structure, with each layer performing independent functions and cooperating with each other to ensure stable and durable overall performance:

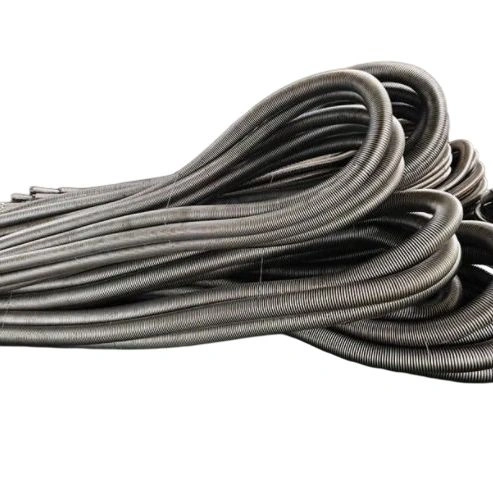

2.1 Inner Corrugated Tube
Made of integral seamless stainless steel, the annular corrugated structure endows the hose with ultra-high flexibility. It supports multi-angle free bending without permanent deformation or cracking after repeated bending. As the core sealing layer, it completely isolates the internal conveying medium from the external environment to avoid medium leakage.

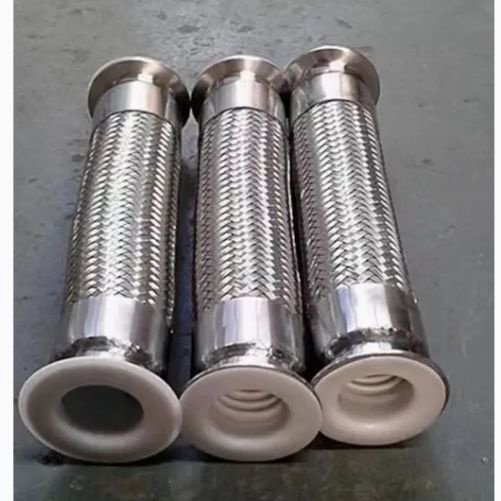

2.2 Outer Braided Mesh Sleeve
The outer layer is woven with high-strength stainless steel wires, which serves as the pressure-resistant and tensile reinforcement layer. It can bear most of the internal medium pressure, prevent the inner corrugated tube from radial expansion and bursting, and greatly improve the working pressure and safety coefficient of the hose. Double-layer or triple-layer braided structures are optional for high-pressure working conditions. In addition, the mesh sleeve can effectively limit the excessive stretching of the hose and protect the inner tube from friction and damage.
Typical Technical Specifications
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Nominal Diameter | DN15-DN600 (1/2"-24") | DN700-DN1000 for large-diameter pipeline systems |
| Nominal Pressure | PN0.6-PN25 (Class 150-Class 300) | PN40+ high-pressure designs |

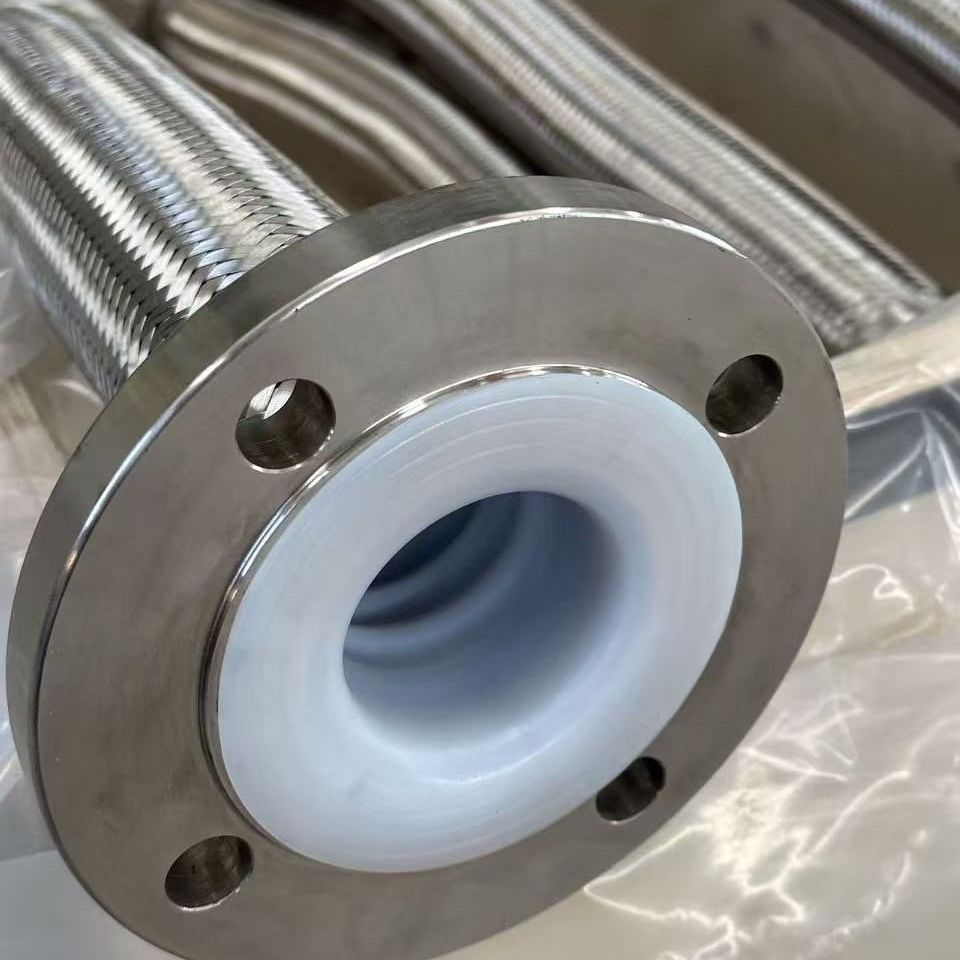

| Temperature Resistance | -200ºC to +260ºC | -269ºC (liquid helium) or +300ºC (PFA lining) |
| Connection Type | Flange, Thread (NPT/BSP), Weld, Sanitary Clamp | Customized end fittings per customer drawings |
| Compliance Standards | ISO 10380, ASME B31.3, FDA, 3A | 610 for petrochemical applications |
a) How can I get more details about your products?
You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
b) How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
c) Do you provide customized parts?
Yes, you can give us drawings and we will manufacture accordingly.
d) To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru , Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).
e) I can't see the goods or touch the goods, how can I deal with the risk involved?
Our quality management system conforms to the requirement of ISO 9001:2015 verified by DNV. We are absolutely worth your trust. We can accept trial order to enhance mutual trust.
