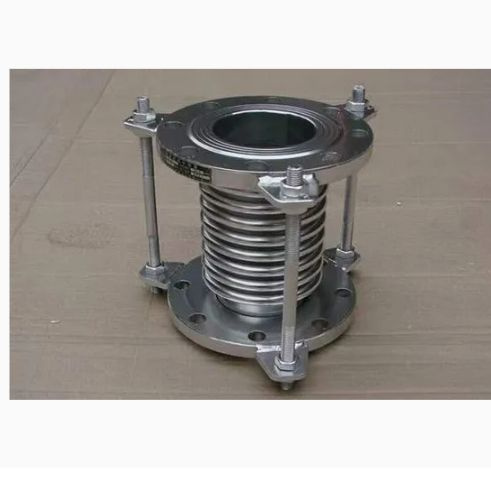

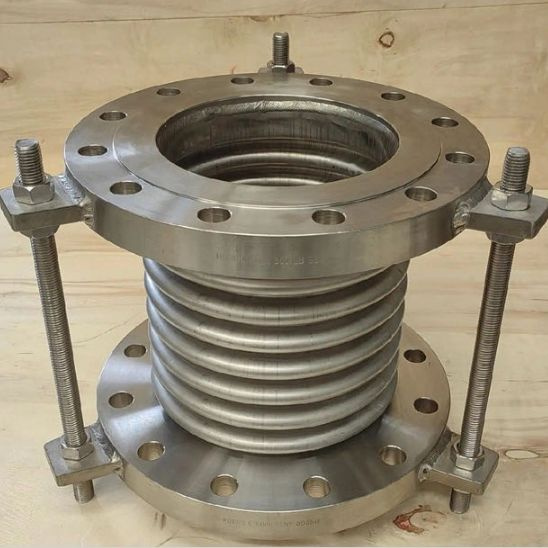

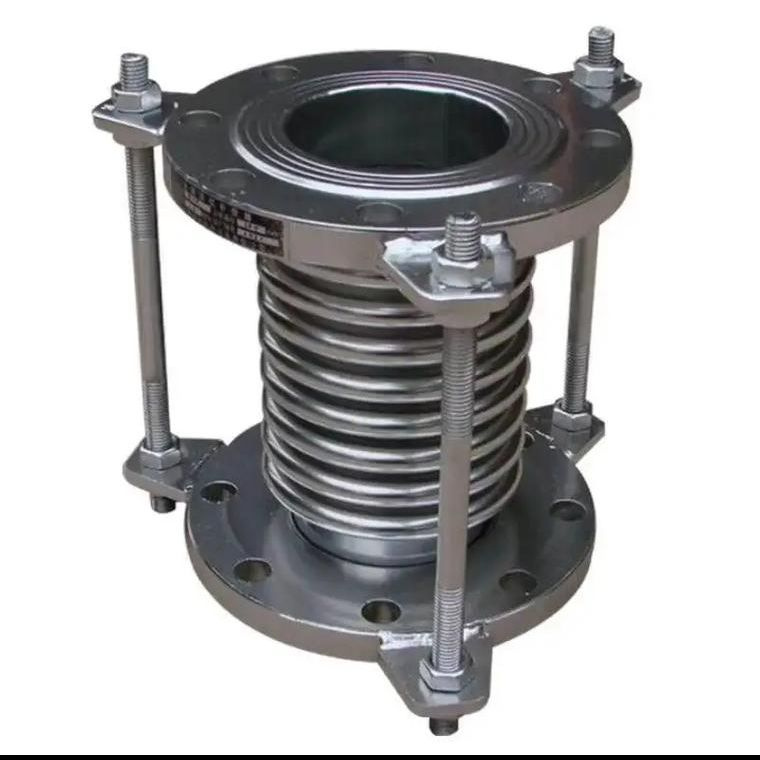

Small caliber internal pressure metal corrugated compensator

The small caliber internal pressure metal corrugated compensator is a professional and refined pipeline compensation component independently designed for small-diameter industrial piping (conventional DN15-DN200). It is a typical axial internal pressure expansion joint, with the internal medium pressure directly acting on the inner wall of the stainless steel bellows. The whole product is assembled by high-precision multi-layer stainless steel corrugated body, seamless connecting end pipes, integral reinforcing rings, flange or welding connection ends and auxiliary protective parts. All structural parts adopt integrated molding and precise welding process, with high overall structural rigidity and good overall stability. Different from conventional large-diameter compensators, this series of products are optimized for narrow installation space and fine pipeline systems, focusing on solving tiny displacement, thermal stress and vibration problems of small-bore pipelines. It can stably adapt to continuous operation of conventional industrial pipelines and special fine pipeline working conditions, and is a core supporting component for safe and stable operation of small-caliber piping systems.

This compensator relies on the excellent elastic deformation performance of stainless steel corrugated elements to realize pipeline displacement compensation. In the long-term operation of industrial pipelines, medium temperature changes, environmental temperature difference, equipment operation vibration and installation reserved errors will cause axial stretching and compression, tiny lateral deviation and angular deflection of the pipeline. When the pipeline produces thermal expansion and contraction displacement, the metal bellows will elastically stretch or compress along the pipeline axis to fully absorb and offset the axial displacement. Meanwhile, the flexible corrugated structure can tolerate a certain range of lateral comprehensive displacement and micro angular displacement, effectively releasing the concentrated thermal stress and mechanical stress inside the pipeline. In addition, the special corrugated buffer structure can weaken the vibration transmission generated by pump bodies, valves and mechanical equipment, isolate pipeline resonance, avoid structural fatigue damage of pipelines and damage to precision instrument accessories caused by long-term vibration, and ensure the safe and stable operation of the entire piping system.

Compact and Optimized Structure: The product adopts miniaturized structural design, with small overall volume and light weight, which greatly saves installation space. It is perfectly suitable for compact layout scenes of mechanical equipment matching, indoor fine piping and narrow industrial pipeline tunnels, and has strong on-site adaptability.

Superior Material Performance: The core bellows is made of high-quality 304, 316L and other stainless steel materials. It has excellent acid and alkali corrosion resistance, high temperature resistance (adaptable to steam high-temperature medium) and low temperature resistance, and can operate stably in humid, corrosive and temperature-variable working environments for a long time. The multi-layer composite structure effectively improves the fatigue resistance and pressure bearing capacity of the bellows, avoiding cracking and damage caused by frequent displacement.

Customizable Functional Configuration: According to on-site working conditions, an internal flow guide sleeve can be added. The flow guide sleeve can isolate the direct scouring of high-speed flowing medium on the bellows, reduce medium turbulence and pipeline pressure loss, and effectively prolong the service life of the compensator. Meanwhile, it supports multiple customized connection forms such as flat welding flange, integral flange and butt welding, meeting different on-site installation process requirements.

Stable and Reliable Operation: The product has good pressure bearing performance and sealing performance, no leakage and no failure in long-term pressure-bearing operation. The elastic recovery performance is stable, and the compensation accuracy for tiny pipeline displacement is high. It can effectively reduce pipeline operation noise and buffer mechanical vibration, with low later maintenance cost and long service cycle.

This series of small-caliber internal pressure corrugated compensators are widely used in various fine industrial small-bore pipeline systems, covering multiple industries such as HVAC central air conditioning systems, industrial circulating water systems, chemical industry, electric power energy, pharmaceutical manufacturing, food processing and mechanical equipment supporting. It is suitable for conveying conventional media such as cold and hot water, saturated steam, heat conduction oil, fuel oil and mild corrosive chemical liquid. It is mainly used for displacement compensation and vibration reduction of supporting small-diameter pipelines of pumps, valves, heat exchangers and precision mechanical equipment, and is universally applicable to indoor and outdoor conventional industrial pipeline working conditions with low and medium pressure and conventional temperature.
